Technical Specifications
| Parameter | Specification |
|---|---|

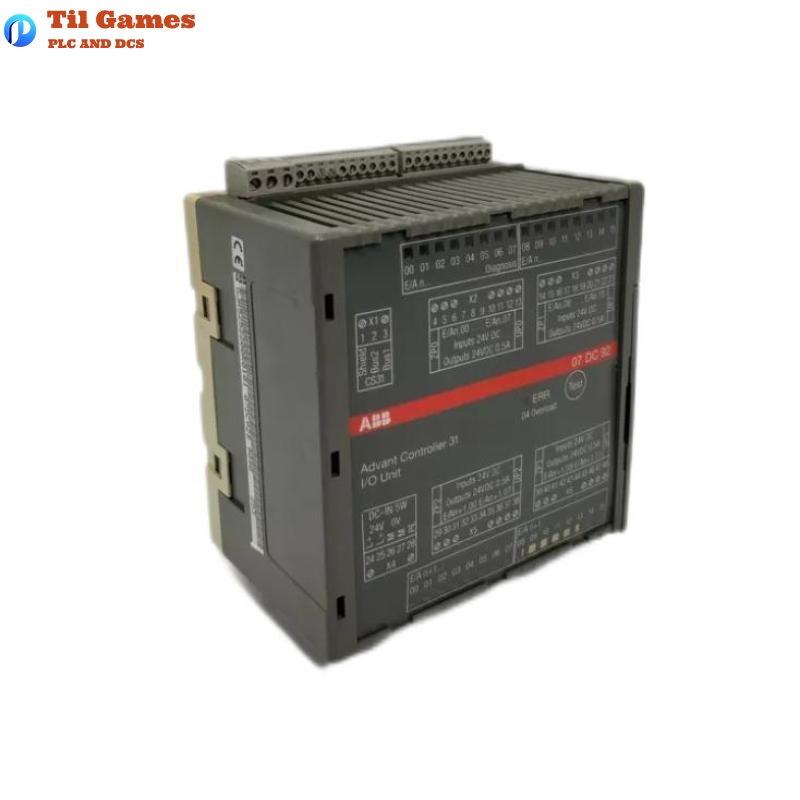

| Product Model | ABB 07DC92 GJR5252200R0101 |
| Type | Digital Input/Output Module |
| Number of Channels | 32 configurable (input/output or re-readable output) |
| Signal Type | 24 V DC (for both inputs and outputs) |
| Isolation | Inputs/outputs isolated by group and from system |
| Output Type | Transistor outputs |
| Max Output Current per Channel | 500 mA |
| Max Group Output Current | 4 A |
| Input Delay | Typical 7 ms |
| Input Voltage Range (High) | +13 V to +30 V |
| Input Voltage Range (Low) | -6 V to +5 V (UPx connected), -30 V to +5 V (UPx not connected) |
| Input Current at +24 V | Typically 7.0 mA |
| Leakage Current at Output Off | < 0.5 mA |
| Switching Frequency (Inductive Load) | Max. 0.5 Hz |
| Switching Frequency (Lamp Load) | Max. 11 Hz at 5 W |
| Overload/Short-Circuit Protection | Yes, with auto reset |
| Diagnostic LEDs | 32 yellow (I/O state), 1 red (module fault) |
| Bus Interface | CS31 system bus, electrically isolated (EIA RS-485 standard) |
| Address Configuration | DIL switch (located under slide cover) |
| Power Supply Voltage | 24 V DC |
| Max Current Consumption (No Load) | 0.15 A |
| Max Power Dissipation (Loaded) | 10 W |
| Mounting Options | DIN rail (EN 50022-35) or 4-point screw mounting |
| Connectors | Removable screw-type terminals |
| Max Conductor Cross-Section | 2.5 mm² (power), 1.5 mm² (signal I/O) |
| Operating Temperature Range | 0 to +55 °C |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: How many I/O channels does the ABB 07DC92 module provide?
A1: The ABB 07DC92 module provides 32 configurable digital I/O channels, which can be individually defined as input, output, or re-readable output.
Q2: What is the rated voltage for input and output signals?
A2: Both input and output channels operate at a nominal signal voltage of 24 V DC.
Q3: Is the module protected against short circuits or overload conditions?
A3: Yes, the outputs are protected against short circuits and overloads. The module automatically deactivates the affected output and reactivates it once the fault is cleared.
Q4: How is the ABB 07DC92 mounted in a control panel?
A4: The module can be mounted on a DIN rail (15 mm depth, EN 50022-35 standard) or fixed using 4 screws (M4 size).
Q5: What kind of diagnostic information does the module provide?
A5: The module includes 32 yellow LEDs for signal states and one red LED for error conditions. It can report overloads, short circuits, internal module errors, and bus errors.
Q6: Can the I/O channels be configured dynamically during runtime?
A6: No, the channel configuration (input or output) is defined through the user program and read during initialization. Runtime changes require reinitialization.
Q7: How is addressing configured on this module?
A7: Addressing is set using a DIL switch under the slide cover on the right side of the module housing. The address is read only at power-on.
Q8: What is the maximum load current per group of outputs?
A8: Each group of 8 outputs can carry a total current of up to 4 A.
