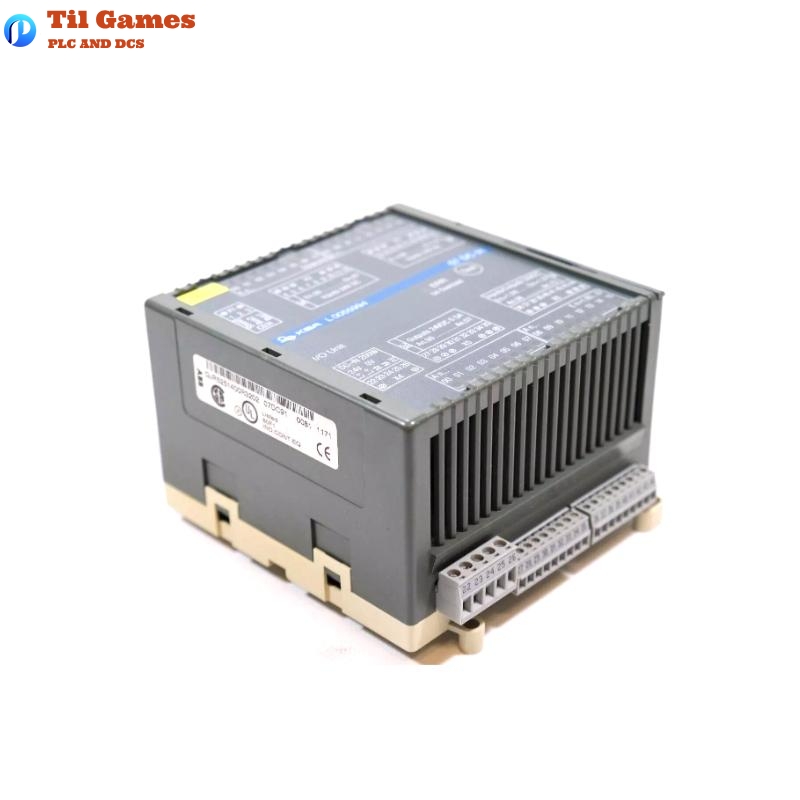

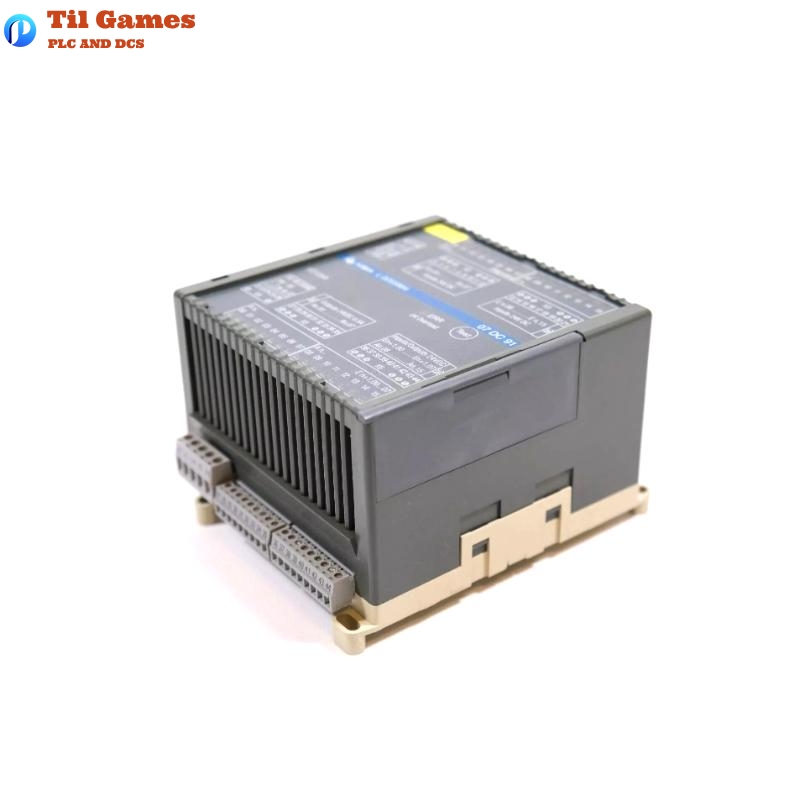

Technical Specifications

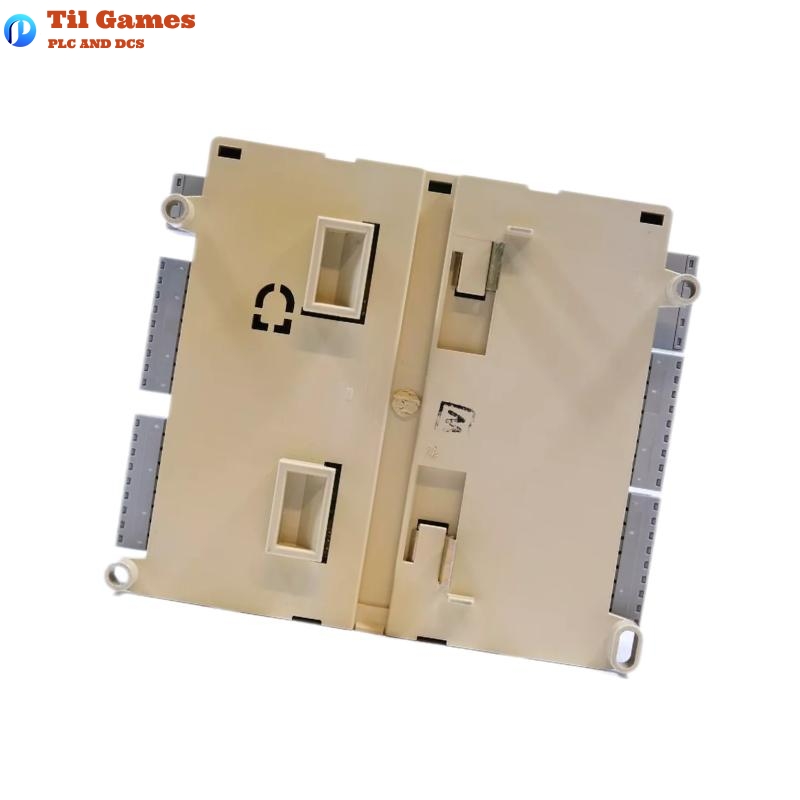

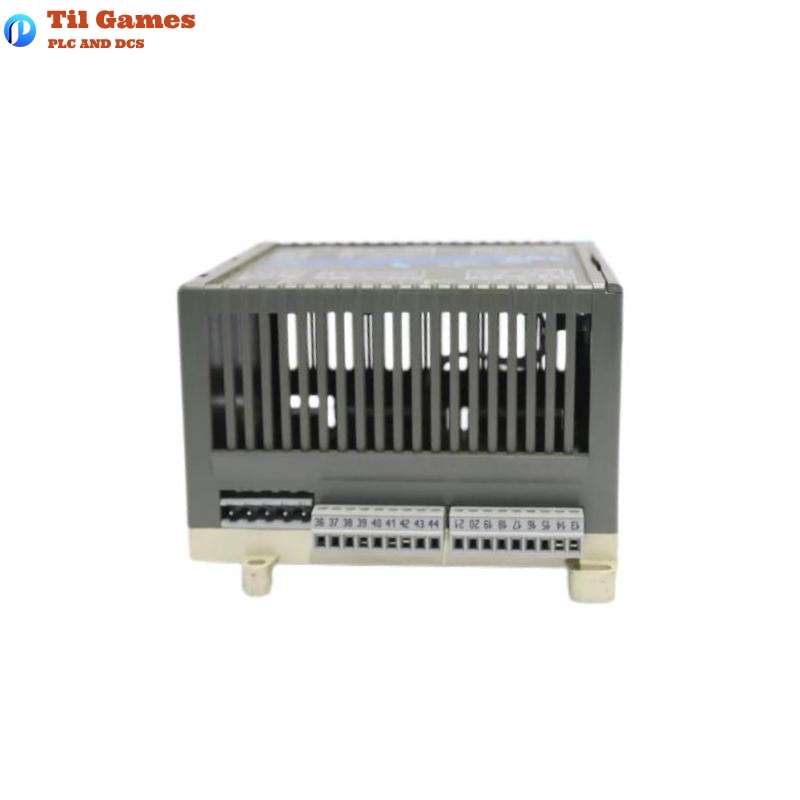

| Parameter | Specification |
|---|---|
| Module Type | Digital Input/Output Module |
| Model Number | 07DC91 GJR5251400R3202 |
| Input Channels | 16 digital inputs |
| Output Channels | 8 digital transistor outputs |
| Configurable Channels | 8 (can be used as input, output, or re-readable output) |
| Operating Voltage | 24 V DC |
| Max. Current Consumption (no load) | 0.15 A |
| Max. Rated Load at Supply Terminals | 4.0 A |
| Max. Power Dissipation (no load/load) | 5 W / 10 W |
| Protection | Reverse polarity, short circuit, overload |
| Short-Circuit Threshold (Output) | > 0.7 A (auto-reset after fault removal) |
| Max. Output Load (per channel) | 0.5 A (24 V DC) |
| Total Load Current Limit | 8 A |
| Input Voltage Range | 0 Signal: -30…+5 V / 1 Signal: +13…+30 V |
| Input Current (at 24 V) | Typical 7.0 mA |
| Output Signal Type | Transistor, sink type |
| Leakage Current (Output at 0 Signal) | < 0.5 mA |
| Switching Frequency (Inductive/Lamp Load) | 0.5 Hz / 11 Hz (max. 5 W) |
| Input Delay | Typ. 7 ms |
| Diagnostic Indicators | 33 LEDs (16 green for input, 16 yellow for output, 1 red error) |
| Bus Interface | CS31 System Bus (RS-485 standard, electrically isolated) |
| Conductor Cross Section (Signal) | Max. 1.5 mm² |
| Conductor Cross Section (Power/Bus) | Max. 2.5 mm² |
| Mounting Method | DIN Rail (15 mm) or 4x M4 screws |
| Cooling | Natural convection (no obstruction) |
| Enclosure Type | Removable screw terminal connectors |
| Dimensions (W × H × D) | 120 × 140 × 85 mm |
| Weight | 1.07 kg (not 450 g as printed – installation-ready weight) |
| Installation Position | Vertical (connectors up and down) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the power supply requirement for the ABB 07DC91 module?
A1: The module operates with a rated supply voltage of 24 V DC.
Q2: How many input and output channels does the 07DC91 module have?
A2: It features 16 digital inputs, 8 digital transistor outputs, and 8 configurable I/O channels.
Q3: Are the outputs of the 07DC91 module protected against short circuits?
A3: Yes, the outputs are protected against overload and short circuit with automatic reactivation after fault removal.
Q4: Can the configurable I/O channels be changed during operation?
A4: The configurable channels are set through the user program and recognized at initialization; dynamic change during operation requires reinitialization.
Q5: How does the module indicate faults or errors?
A5: A red LED on the front panel lights up to indicate faults such as short circuit, overload, or bus errors. Diagnostic information is also sent to the central unit.
Q6: What is the switching capacity of the output channels?
A6: Each transistor output can handle up to 0.5 A at 24 V DC. The total output group current should not exceed 4 A.
Q7: What type of electrical isolation is provided in the 07DC91 module?
A7: The CS31 system bus interface is electrically isolated from the power and signal sections of the module.
Q8: What are the module’s dimensions and weight for cabinet installation?
A8: The physical dimensions are 120 × 140 × 85 mm (W × H × D), and the operational weight is approximately 1.07 kg.
