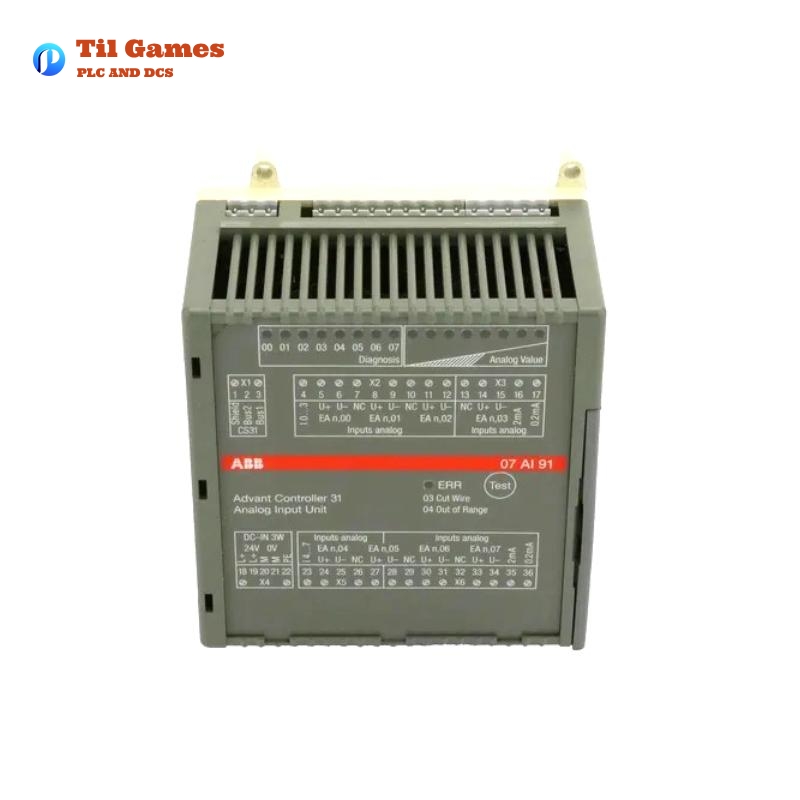

ABB 07AI91 GJR5251600R0202 Analog Input Module

ABB 07AI91 GJR5251600R0202 Analog Input Module

Manufacturer:ABB

Product Number:07AI91 GJR5251600R0202

Product Type:Analog Input Module

Origin:Sweden (SE)

Dimensions:120 × 140 × 85 mm

Weight:0.45 kg

Views:28

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/1-6.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/4-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/5-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3-2.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Technical Specifications

Parameter Specification
Module Type Analog Input Module
Part Number 07AI91 GJR5251600R0202
Number of Channels 8
Input Type Configurable for temperature sensors or voltage inputs
Input Ranges ±10 V, ±5 V, ±500 mV, ±50 mV, 4-20 mA (with external 250Ω resistor), Pt100/Pt1000, Thermocouples (J, K, S)
Electrical Isolation CS31 system bus interface from the rest of the unit
Supply Voltage 24 V DC
Power Consumption Max. 3 W
Maximum Current Consumption 0.15 A
Signal Resolution 12-bit + sign
Update Rate per Channel 100 ms (50/60 Hz suppression), 30 ms (no suppression), 150 ms (thermocouples)
Line Frequency Suppression Configurable for 50 Hz, 60 Hz, or none
Mounting DIN rail (EN 50022-35) or screws (M4)
Dimensions (W x H x D) 120 mm × 140 mm × 85 mm
Weight 450 g
Wiring Method Removable terminal blocks with screw-type terminals (max. 2.5 mm²)
Operating Temperature Range 0 to 55°C
Communication Interface CS31 system bus (RS-485)

Product Introduction

The ABB 07AI91 GJR5251600R0202 Analog Input Module is a versatile and high-performance remote input module designed for the Advant Controller 31 series. It provides 8 configurable analog input channels that support various signal types, including voltage, current, RTDs (Pt100/Pt1000), and thermocouples (J, K, S). The module ensures reliable data acquisition with high precision and fast signal conversion. It is widely used in industrial automation for temperature and process monitoring.

The 07AI91 module features electrical isolation, self-calibration, and diagnostic functions to ensure accurate measurements and operational reliability. Its configurable input ranges and address settings make it highly adaptable to different industrial applications.


Applications

  • Industrial Automation – Used in control systems for real-time monitoring of temperature, voltage, and current.
  • Process Control – Applied in chemical, oil & gas, and food processing industries for precise analog signal processing.
  • Energy Management – Monitors temperature and voltage variations in power plants and substations.
  • HVAC Systems – Used in heating, ventilation, and air conditioning systems for temperature regulation.
  • Manufacturing – Ensures precise measurement of environmental conditions in production lines.

Advantages

  • High Versatility – Supports multiple input types, including voltage, current, and temperature sensors.
  • Electrical Isolation – Ensures reliable signal acquisition with reduced interference.
  • Self-Calibration & Diagnostics – Built-in diagnostic functions for detecting wiring issues and module errors.
  • Configurable Input Ranges – Allows flexible setup for different industrial requirements.
  • Fast Signal Processing – 12-bit resolution with efficient data acquisition for high accuracy.
  • Compact & Modular Design – Fits easily into existing control system architectures.
  • Easy Installation & Maintenance – DIN rail mounting with removable terminal blocks.
